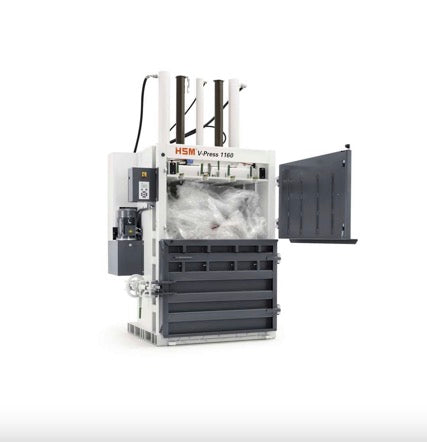

HSM V-Press 1160 vertical baling press
With a maximum bale weight of 550 kg, strong pressing power and an absolutely high efficiency level, the HSM V-Press 1160 is the top-model of the HSM V-Press series.
-High capacity press chamber means optimum filling efficiency
-Low-maintenance, sturdy hydraulics and hard-chromed pistons ensure long service life
-Highly compressed bales which can already be marketed without requiring any further pressing
-Configurations: eco – double door with hand wheel door lock plus – sliding door with hand wheel door lock max – sliding door with hydraulic door lock
*contact for any installation fees
Technical data "HSM V-Press 1160"
| Order number: | 6140113 |
| Pressing power: | 60 t |
| Specific pressing power: | 65,3 psi |
| Driving power: | 6.44 HP |
| Voltage / Frequency: | 480 V / 60 Hz |
| Cycle time when idling vacío: | 25 s |
| Volume throughput in idle operation (theor.): | 1149 cft/h |
| Loading height: | 43.9" |
| Loading aperture width x height: | 47.05" x 25.59" |
| Bale length x Bale width x Bale height: | 47.24" x 47.24" x 43.31" |
| Bale weight: | 1213 lb |
| Method of loading: | manual |
| Width x Depth x Height: | 70.08" x 66.26" x 117.52" |
| Weight: | 5070.63 lb |
| Type of consumables: | Wire |
| Press material: | Plastic film, Mixed paper, Cardboard |
