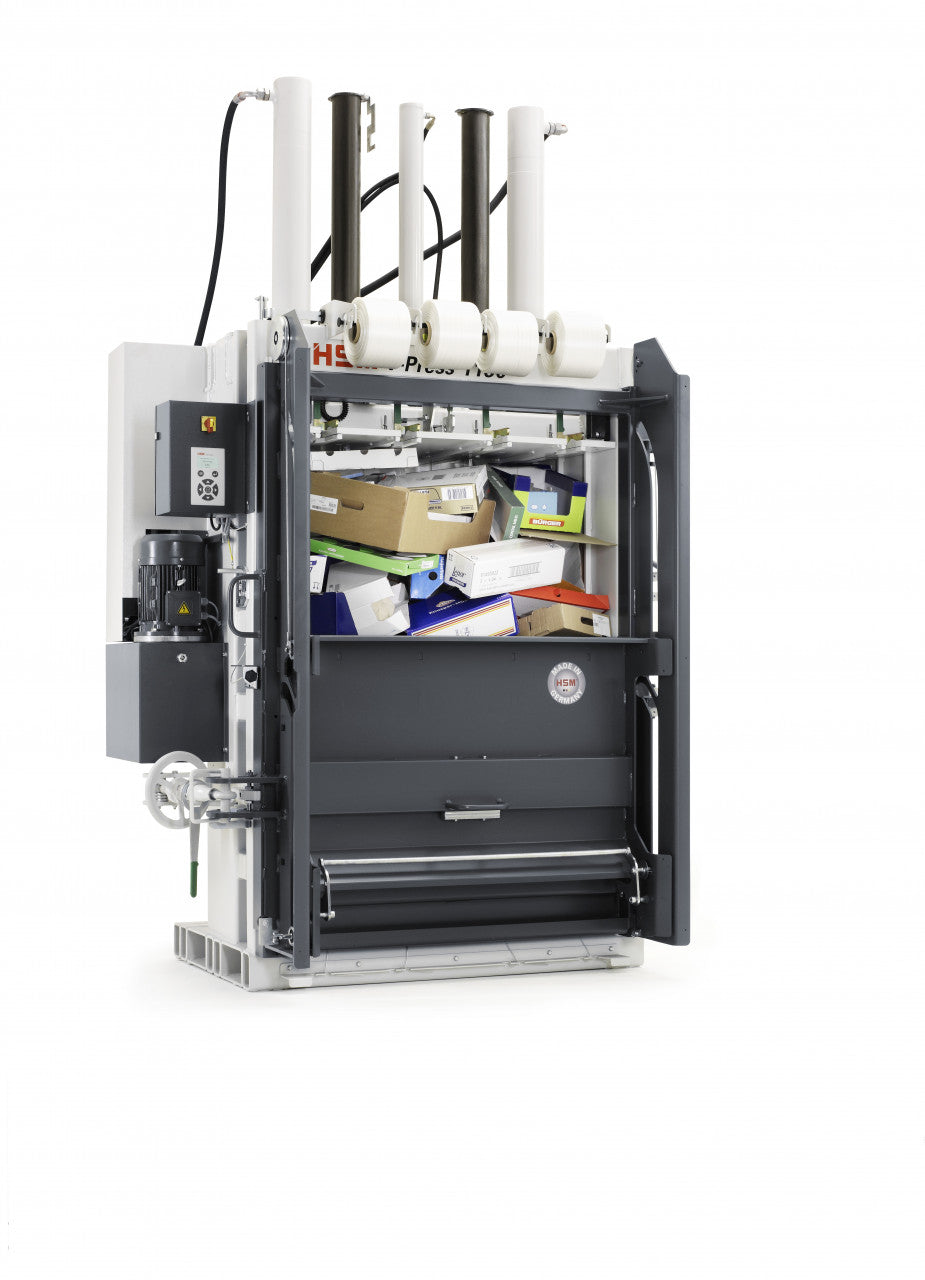

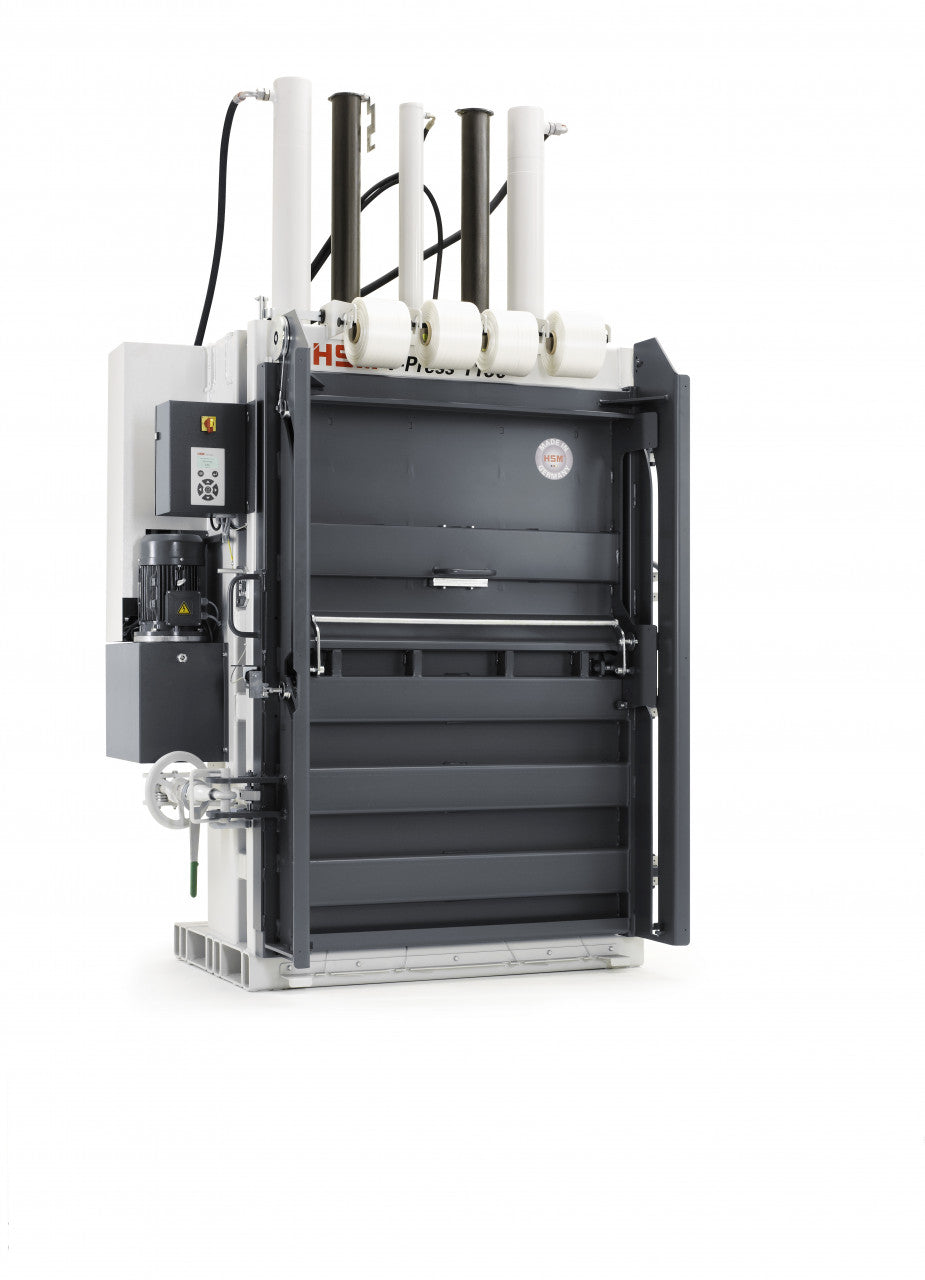

HSM V-Press 1160 Plus Vertical Baling Press

HSM V-Press 1160 Plus Vertical Baling Press

Regular price $25,210.79 USD
Regular price Sale price $25,210.79 USD
Sale Sold out

The Ultimate in Efficiency and Performance

Experience the top-of-the-line HSM V-Press 1160 vertical baling press, designed to deliver maximum bale weight, strong pressing power, and an exceptionally high efficiency level. This baler is the pinnacle of the HSM V-Press series.

Key Features of the HSM V-Press 1160 Plus:

  • Sliding Door: Upper half of the doors is pushed down for filling and automatically opens after the compression process
  • Hand Wheel Door Lock: Counter-rotating thread for easy opening and closing
  • Rapid Stroke Technology: Highly energy-efficient operation saves time and money
  • Versatile Compression: Suitable for both cardboard and film
  • Automatic Start: Pressing process begins automatically after closing the door
  • Optimized Bale Dimensions and Weights: Efficient storage, transport, and direct commercialization
  • User-friendly Display: Convenient membrane keypad with text display, showing the machine's current status
  • TCS Technology: HSM TCS (Torsion Control System) monitors press ram movement
  • Strapping Options: Wire strapping; optional tape station available for strapping with polyester tape or wire according to requirements

Technical Specifications for the HSM V-Press 1160 Plus:

  • Order Number: 6140203
  • EAN: 4026631063807
  • Pressing Power: 60 tons
  • Specific Pressing Power: 65.3 psi
  • Driving Power: 6.44 HP
  • Voltage / Frequency: 480 V / 60 Hz
  • Cycle Time (Idle): 25 seconds
  • Volume Throughput (Idle, Theoretical): 486 cu ft/h
  • Loading Height: 43.9 inches
  • Loading Aperture (W x H): 47.05" x 25.59"
  • Bale Dimensions (L x W x H): 47.24" x 43.31" x 47.24"
  • Bale Weight: 1213 lbs
  • Machine Dimensions (W x D x H): 70.08" x 74.61" x 117.52"
  • Weight: 5480.69 lbs
  • Consumables Type: Wire
  • Press Material: Plastic Film, Mixed Paper, Cardboard

Transform your waste management process with the highly efficient and powerful HSM V-Press 1160 Plus vertical baling press. This top-of-the-line machine provides an unmatched performance for handling large volumes of waste.
